Adding a Server

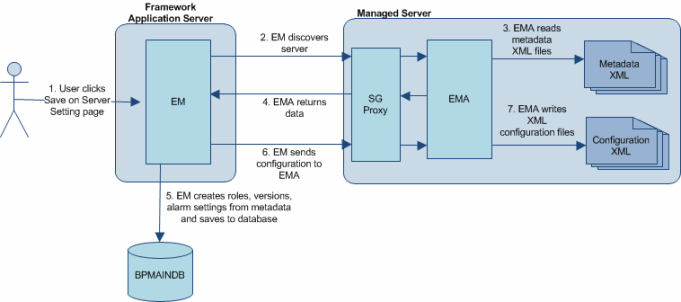

An administrator adds managed servers to the Installations tree by selecting a Site node and then clicking the Create Installation, Server button. The administrator then completes the New Server screen.

When the administrator saves the New Server screen, the Enterprise Manager performs the server discovery Process performed by the Enterprise Manager application in which the application regularly communicates with each server in the system to determine whether any new software (new release, service pack, hot fix, or patch) or server roles have been added or installed on the server. process on the server specified in the New Server screen.

The Enterprise Manager discovers the server roles installed, server role Entity that contains a logical, predefined set of components (system software or certified third-party software) deployed in the Data Center and Site Zones that provide specific functionality for the system. metadata, server role instance data, and server and server role version information for the server being added. (This process is described in Server Discovery.) Enterprise Manager stores all of this information in the Framework database.

Enterprise Manager also adds the appropriate Server and Server Role nodes to the Installations tree.

Any server roles that are active but not yet configured are provided with their default settings by Enterprise Manager. (The default settings are programmatically determined during the server installation.) Enterprise Manager Agent Web application installed on every system server that communicates with the Enterprise Manager regarding any configuration changes or alarm messages for the relevant server. regularly queries the Enterprise Manager for this configuration information. Enterprise Manager then transmits this configuration information to the Enterprise Manager Agent on the managed server Server that is managed by the Enterprise Manager application.. The Enterprise Manager Agent handles the configuration files as described in Enterprise Manager Agent application.
